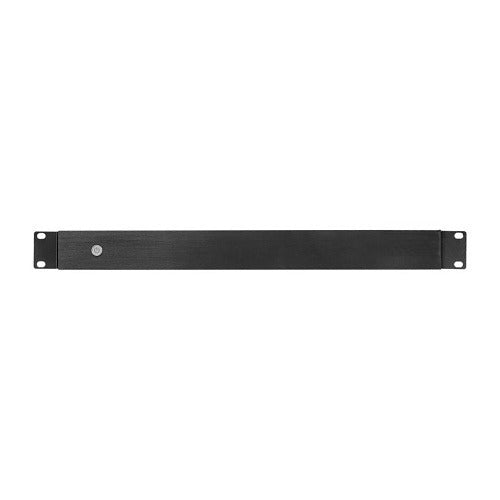

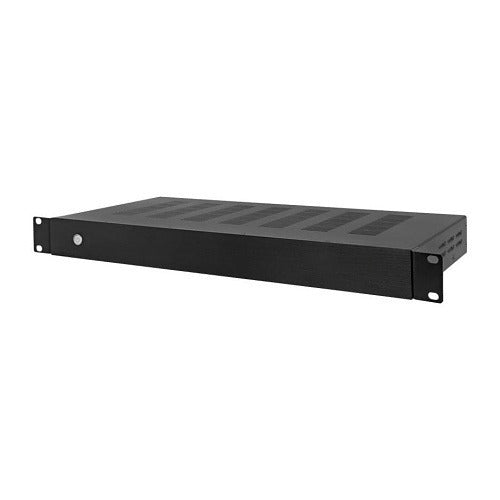

Episode EA-AMP-SUB-1D-300 300W Digital Subwoofer Amplifier

The Episode EA-AMP-SUB-1D-300 is a 300W digital amplifier designed to power passive subwoofers, such as in-wall, in-ceiling and landscape burial subwoofers. It provides the dedicated low-frequency power these subwoofers need while staying compact enough for a rack or equipment shelf.

Three custom EQ settings let you tailor the output to the subwoofer and room. Multiple power-on options, including audio-sensing and 12V trigger, allow the amplifier to turn on automatically with the rest of the system. Optimized controls make setup straightforward, and a rack-mount option keeps installations tidy. The single-channel amplifier delivers 300W RMS into 4 ohms with a 30Hz to 200Hz operating range, carries UL/EN60065 certification, and is backed by a 2-year limited warranty.

Key features

• 300W RMS into 4 ohms.
• Three custom EQ settings.
• Audio-sensing and 12V trigger power-on.
• Multiple power-on options.
• Rack-mount option.
• Optimized controls.

Specifications

• Brand: Episode
• Model: EA-AMP-SUB-1D-300
• Channels: 1
• RMS output: 300W
• Impedance: 4 ohm
• Frequency range: 30Hz - 200Hz
• Certification: UL/EN60065
• Dimensions: 16.9" W x 1.75" H x 8.1" D
• Shipping weight: 9.1 lb
• Warranty: 2-year limited
• UPC: 842822041799

Ideal for

• Powering passive in-wall and in-ceiling subwoofers
• Landscape burial subwoofers
• Rack-mounted AV systems
