Episode EA-COM-AMP-4D-80 Commercial 4-Channel 80W Digital Amplifier, 70V/8 Ohm

The Episode EA-COM-AMP-4D-80 is a four-channel, 80W-class digital amplifier from the Episode Business Music Solution. It provides robust direct drive amplification for 70V and 8 ohm commercial speaker systems in offices, shops, restaurants and other business spaces where a compact, configurable amplifier is needed.

Built-in DSP and matrixing handle tuning and routing, while MaxShare power technology distributes amplifier capacity where it is needed. Each output is easy to configure with rear panel buttons. A remote input allows automatic action triggering, and advanced IP control supports automation and monitoring. The 1U size uses minimal rack space, and the amplifier is OvrC-enabled for remote monitoring, configuration and troubleshooting.

Key features

• 4 channels of direct drive amplification.
• Built-in DSP and matrixing.
• MaxShare power technology.

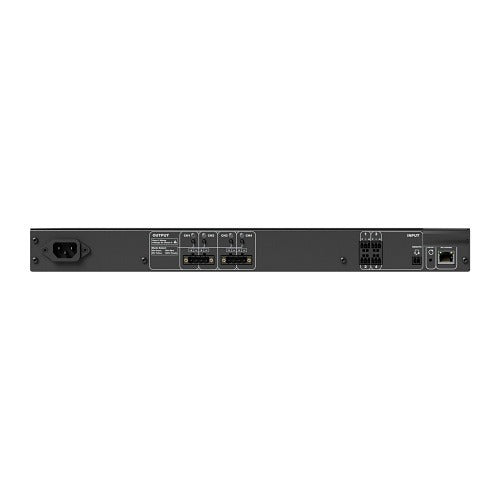

• Rear panel buttons to configure each output.
• Remote input for automatic action triggering.
• Advanced IP control.
• 1U rack size.
• OvrC enabled.

Specifications

• Brand: Episode
• Model: EA-COM-AMP-4D-80
• Product line: Episode Business Music Solution
• Channels: 4
• Maximum frequency response: 20kHz
• Dimensions: 19" x 1.75" x 14"
• Product weight: 9 lb
• Operating temperature: 14-122°F
• Storage temperature: -22-158°F
• Operating humidity: 20-90% non-condensing
• Certifications: CE, FCC Part 15 Class B, RoHS2, UL
• Shipping weight: 14.6 lb
• UPC: 842822064835

Ideal for

• Small and mid-size commercial spaces
• Restaurants, shops and offices
• Compact rack installations
