Episode EA-COM-AMP-8D-160 Business Music 8x160W Amplifier, 70V/100V/8/4 Ohm

The Episode EA-COM-AMP-8D-160 is an eight-channel, 160W-class amplifier from the Episode Business Music Solution, built to drive many speaker zones from a single 1U chassis. Selectable 70V, 100V, 8 ohm and 4 ohm outputs on each channel make it suitable for mixed speaker systems in offices, retail, hospitality and corporate buildings.

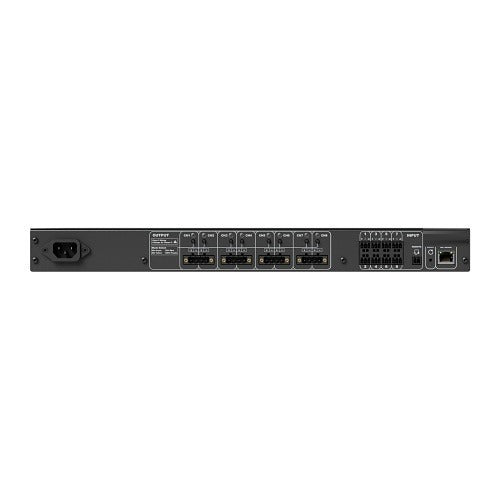

Channels share power dynamically so capacity goes where it is needed. Built-in EQ and compression DSP with matrixing tunes and routes audio. Rear-mounted color-coded buttons, one per output channel, set each output's impedance (100V purple, 70V blue, 8 ohm yellow, 4 ohm green) and include a lockout to protect settings. A 2-pin contact closure handles input/output control and muting, IP control supports automation and installation, and OvrC compatibility enables remote monitoring and configuration.

Key features

• 8 channels in a 1U rack chassis.
• Selectable 70V/100V/8 ohm/4 ohm outputs.
• Dynamic power sharing between channels.
• EQ and compression DSP with matrixing.
• Color-coded output buttons with lockout.
• 2-pin contact closure for control and muting.
• IP control for automation.
• OvrC compatible.

Specifications

• Brand: Episode
• Model: EA-COM-AMP-8D-160
• Product line: Episode Business Music Solution
• Channels: 8
• Maximum frequency response: 20kHz
• Dimensions: 19" x 1.75" x 14"
• Weight: 12 lb
• Operating humidity: 20-90% non-condensing
• Certifications: CE, FCC Part 15 Class B, RoHS2, UL
• UPC: 842822064873

Ideal for

• Large multi-zone commercial systems
• Retail, hospitality and offices
• Rack installations with limited space
