Episode EA-COM-AMP-8D-350 Business Music 8x350W Amplifier, 70V/100V/8/4 Ohm

The Episode EA-COM-AMP-8D-350 is the high-power eight-channel amplifier in the Episode Business Music Solution, delivering 80 to 350W per channel for large commercial audio systems. Selectable 70V, 100V, 8 ohm and 4 ohm outputs let it drive distributed-line and low-impedance speakers across many zones from one 1U chassis.

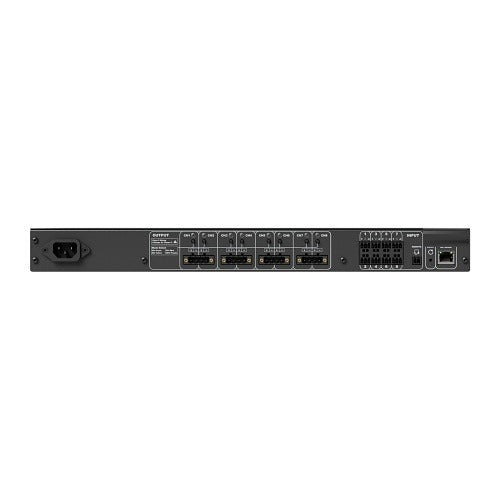

Intelligent power sharing between paired channels directs capacity where the installation needs it. A powerful EQ and compression DSP with built-in matrixing handles tuning and routing. Rear-mounted buttons, one per output channel, set each output's impedance with color mapping (100V purple, 70V blue, 8 ohm yellow, 4 ohm green). A 2-pin contact closure is configurable for input/output routing and muting, IP control enables automation and configuration, and OvrC integration provides remote monitoring, configuration and troubleshooting. The 1U design saves space and allows stacking.

Key features

• 8 channels, 80-350W per channel.
• Selectable 70V/100V/8 ohm/4 ohm outputs.
• Intelligent power sharing between paired channels.
• EQ and compression DSP with matrixing.
• Color-mapped output buttons on the rear panel.
• 2-pin contact closure for routing and muting.
• IP control.
• 1U rack design, stackable.
• OvrC integration.

Specifications

• Brand: Episode
• Model: EA-COM-AMP-8D-350
• Product line: Episode Business Music Solution
• Channels: 8
• Output power: 80-350W per channel
• Maximum frequency response: 20kHz
• Dimensions: 19" x 1.75" x 14"
• Product weight: 12 lb
• Operating humidity: 20-90% non-condensing
• Certifications: CE, FCC Part 15 Class B, RoHS2, UL
• Shipping weight: 17.2 lb
• UPC: 842822064880

Ideal for

• Large multi-zone commercial systems
• Corporate buildings and campuses
• High-power 70V/100V distributed audio
