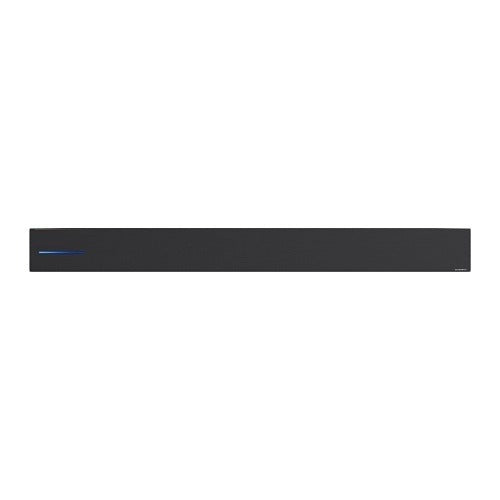

Episode EA-COM-DSP-8-4 Business Music 8x4 Digital Signal Processor

The Episode EA-COM-DSP-8-4 is an 8x4 digital signal processor from the Episode Business Music Solution, purpose-built for commercial audio and paging. It sits at the center of a business music system, mixing and routing sources to zones while giving installers precise control over tuning.

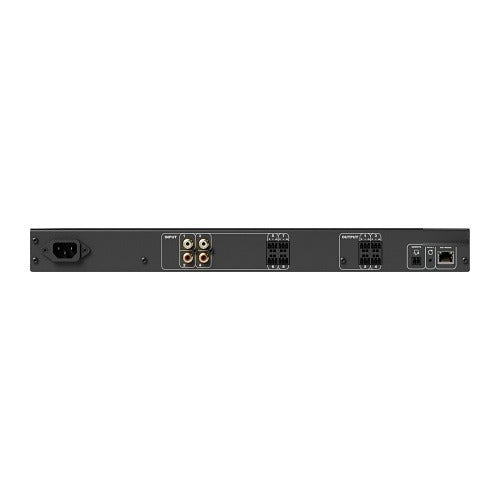

The platform handles microphones as well as unbalanced, balanced and MoIP sources, and it is MoIP-enabled for receiving and transmitting audio over the network. Input and output EQ with microphone processing provide precise system tuning. Configurable ducking for priority inputs suits paging, playback and emergency communications, and a 2-pin contact closure can play built-in or user-created messages, trigger a preset or mute all zones. Configurable zone controller wall plates give source and zone control anywhere in the space, the system integrates with commercial control systems, network audio input devices remove the need for home runs, and OvrC allows remote monitoring, configuration and troubleshooting.

Key features

• 8x4 commercial DSP for audio and paging.
• Mic, balanced, unbalanced and MoIP sources.
• Input/output EQ with microphone processing.
• Priority ducking for paging and emergency messages.
• 2-pin contact closure for messages, presets and mute.
• Zone controller wall plate support.
• Control system integration.
• OvrC enabled.

Specifications

• Brand: Episode
• Model: EA-COM-DSP-8-4
• Product line: Episode Business Music Solution
• Configuration: 8x4
• EQ: 20 bands
• Maximum frequency response: 20kHz

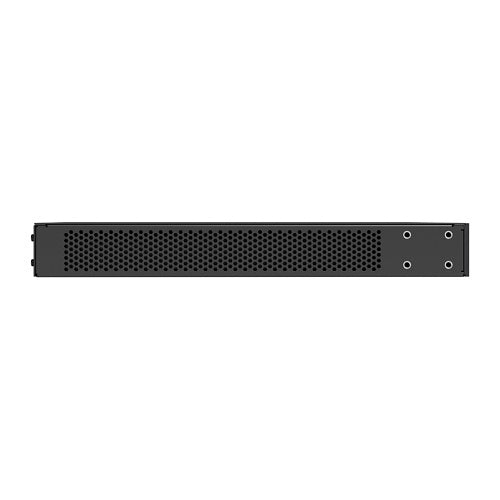

• Dimensions: 19" x 1.75" x 14"
• Product weight: 7 lb
• Operating temperature: 14-122°F
• Operating humidity: 20-90% non-condensing
• Certifications: CE, FCC Part 15 Class B, RoHS2, UL
• Shipping weight: 18.7 lb
• UPC: 842822064804

Ideal for

• Corporate buildings and offices
• Paging and emergency messaging
• Multi-zone business music
