Episode EA-COM-MXAMP-160 Business Music 2x160W MixAmp, 70V/100V/8/4 Ohm

The Episode EA-COM-MXAMP-160 is a two-channel MixAmp from the Episode Business Music Solution line, combining source mixing, DSP and amplification in a single unit for background music and paging in commercial spaces. Selectable 70V, 100V, 8 ohm and 4 ohm outputs make it suitable for both distributed-line and low-impedance speaker systems.

The MixAmp supports up to 16 sources to 8 zones, including mic, line, balanced, unbalanced and MoIP inputs, and built-in audio matrixing gives flexible source routing. Direct drive amplification delivers 160W per channel for clear commercial audio. A high-power DSP provides input and output EQ plus microphone processing such as ducking, compression and gating. Priority inputs with configurable ducking automatically play priority sources, and a remote 2-pin contact closure input can trigger audio messages or scene presets. A high-resolution color front panel display offers light and dark modes, and OvrC support enables remote monitoring, configuration and troubleshooting.

Key features

• Selectable 70V/100V/8 ohm/4 ohm outputs.
• Up to 16 sources to 8 zones including MoIP.
• 160W per channel direct drive.
• DSP with EQ and mic processing.
• Built-in audio matrixing.
• Priority inputs with configurable ducking.
• Remote 2-pin contact closure for messages or presets.

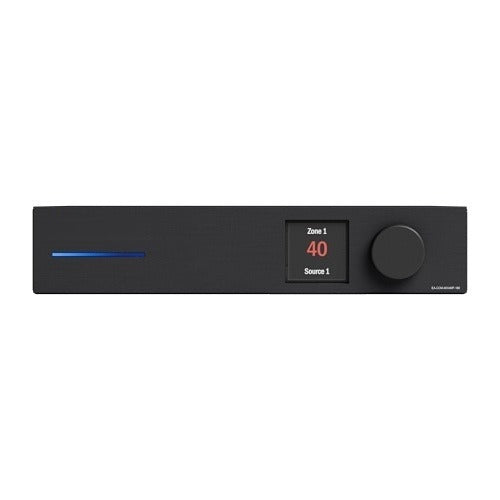

• Color front panel display with light/dark modes.
• OvrC-enabled remote management.

Specifications

• Brand: Episode
• Model: EA-COM-MXAMP-160
• Product line: Episode Business Music Solution
• Channels: 2
• Maximum frequency response: 20kHz
• Operating temperature: 14-122°F
• Storage temperature: -22-158°F
• Operating humidity: 20-90% non-condensing
• Certifications: CE, FCC Part 15 Class B, RoHS2, UL
• Compatibility: Control4
• Weight: 6 lb
• UPC: 842822064811

Ideal for

• Offices and corporate buildings
• Retail stores, restaurants and cafes
• Multi-zone background music with paging
