Episode EA-COM-MXAMP-350 Business Music 2x350W MixAmp, 70V/100V/8/4 Ohm

The Episode EA-COM-MXAMP-350 is a two-channel MixAmp from the Episode Business Music Solution line, built for background music, paging and zoned audio in corporate buildings and other commercial spaces. It combines source mixing, DSP and amplification in one unit, with selectable outputs so it can drive 70V, 100V, 8 ohm or 4 ohm speaker systems.

The MixAmp supports up to 16 sources to 8 zones, including mic, line, balanced, unbalanced and MoIP inputs, and built-in matrixing routes audio across zones. Direct drive amplification delivers 160W per channel for clear commercial audio. A high-powered DSP provides input and output EQ, compression, gating, ducking and de-essing. Priority inputs with configurable ducking automatically play priority sources such as announcements, and a remote 2-pin contact closure can trigger audio messages, presets, mute and source play. A high-resolution color front panel display offers light and dark modes, and OvrC support allows remote monitoring, configuration and troubleshooting.

Key features

• Selectable 70V/100V/8 ohm/4 ohm outputs.
• Up to 16 sources to 8 zones including MoIP.
• 160W per channel direct drive.
• DSP with EQ, compression, gating, ducking and de-essing.
• Built-in matrixing for audio routing.
• Priority inputs with configurable ducking.
• Remote 2-pin contact closure for messages, presets, mute and source play.

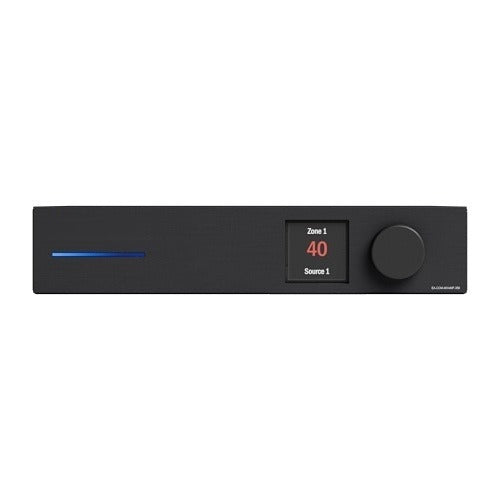

• Color front panel display with light/dark modes.
• OvrC-enabled remote management.

Specifications

• Brand: Episode
• Model: EA-COM-MXAMP-350
• Product line: Episode Business Music Solution
• Channels: 2
• Maximum frequency response: 20kHz
• Operating temperature: 14-122°F
• Storage temperature: -22-158°F
• Operating humidity: 20-90% non-condensing
• Certifications: CE, FCC Part 15 Class B, RoHS2, UL
• Compatibility: Control4
• Weight: 6 lb
• UPC: 842822064828

Ideal for

• Corporate offices and buildings
• Retail, restaurants and hospitality venues
• Multi-zone background music with paging
