Episode EA-COM-WP-BT-WH Business Music Bluetooth Audio Input Wall Plate with MoIP, White

The Episode EA-COM-WP-BT-WH is a Bluetooth audio input wall plate for the Episode Business Music Solution. It lets staff or guests stream music from a phone to the building's sound system, and its built-in MoIP transmitter sends that audio across a MoIP network to any zone.

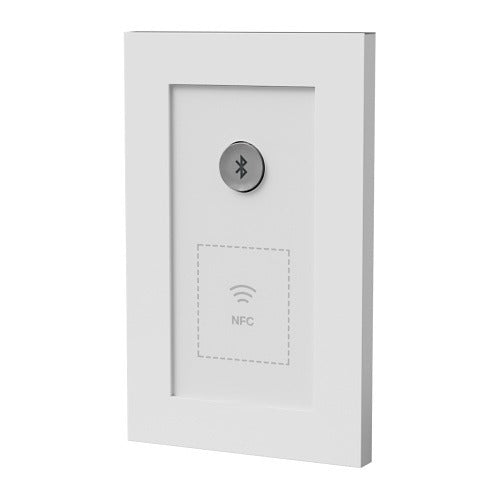

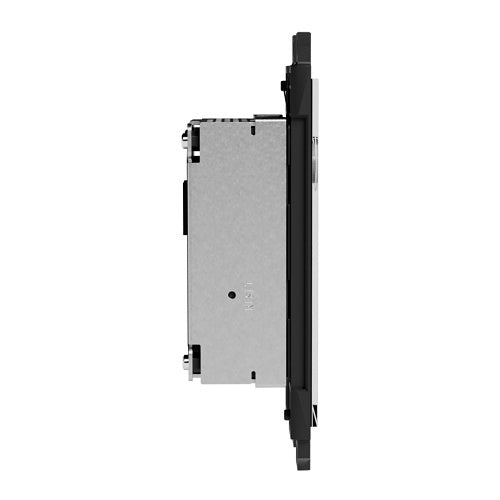

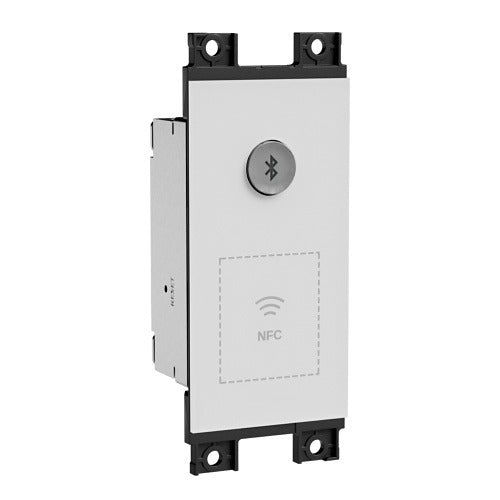

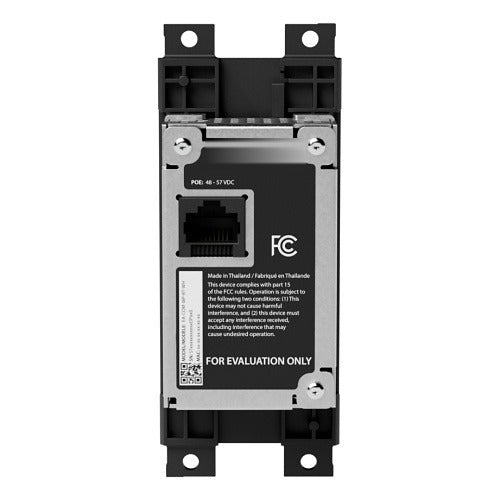

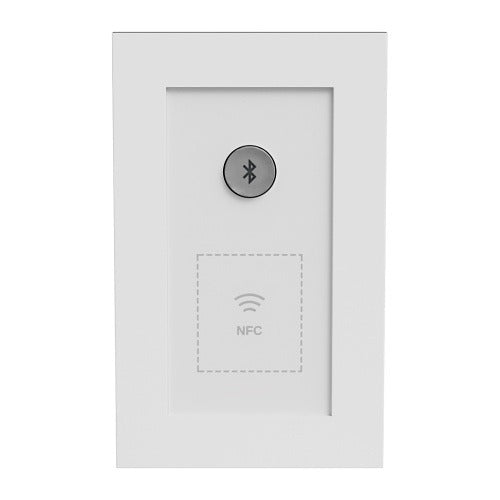

The wall plate is PoE powered and connects over a single CAT5e/6 cable, as shown on the rear in the photos. A splash-proof, fingerprint-resistant acrylic face in scratch-resistant gloss white keeps it looking clean in busy spaces, and an NFC area plus a Bluetooth button make pairing simple, with fully configurable pairing options. A patented installation system aligns it precisely in a junction box, and a single-gang gloss faceplate is included. OvrC support enables remote monitoring and control.

Key features

• Bluetooth audio input
• Built-in MoIP transmitter
• PoE powered over CAT5e/6
• Splash-proof, fingerprint-resistant acrylic face
• Patented junction box alignment system
• Configurable pairing options
• OvrC enabled
• Single-gang gloss faceplate included

Specifications

• Brand: Episode
• Model: EA-COM-WP-BT-WH
• Series: Episode Business Music Solution
• Product type: Bluetooth audio input wall plate
• Power: PoE
• Network: CAT5e/6
• Color: Gloss white
• Dimensions: 4" x 2.125" x 2.125"
• Operating temperature: 14–122°F
• Operating humidity: 20–90% non-condensing
• OvrC enabled: Yes
• UPC: 842822064965

Ideal for

• Restaurants, retail and fitness studios
• Conference and break rooms
• Any MoIP business music system
