Episode EA-COM-WP-MIC-WH Business Music Microphone / XLR Input Wall Plate with MoIP, White

The Episode EA-COM-WP-MIC-WH is a microphone/XLR input wall plate for the Episode Business Music System (EBMS). It adds a wall-mounted mic input anywhere you need announcements or live audio, and its built-in MoIP transmitter sends that audio over the network to EBMS DSPs and MoIP zones.

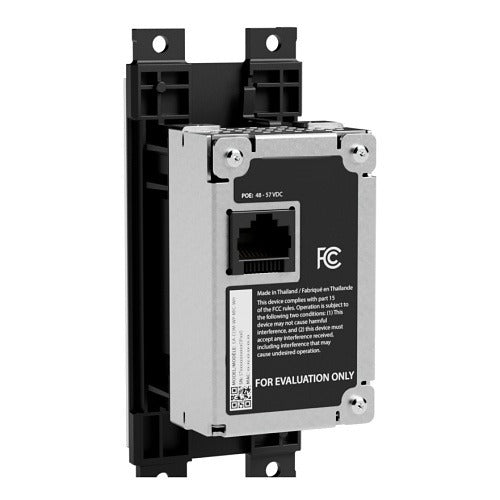

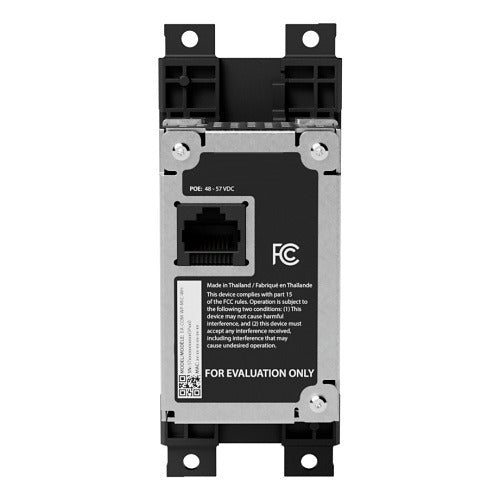

Built-in microphone processing includes compression, gating and a de-esser for clear, consistent speech, and 48V phantom power supports condenser microphones. The plate is powered and controlled over a single CAT5e/6 cable using PoE, as shown on the rear in the photos. A splash-proof, fingerprint-resistant acrylic face in gloss white suits busy commercial spaces, and a patented installation system ensures precise, aligned mounting in a junction box. A single-gang faceplate is included, and OvrC support enables remote configuration and monitoring. It is also available in gloss black.

Key features

• XLR microphone input for EBMS
• Built-in MoIP transmitter
• Mic processing: compression, gating and de-esser.
• 48V phantom power for condenser mics
• PoE powered over one CAT5e/6 cable
• Splash-proof, fingerprint-resistant acrylic face
• Patented alignment installation system

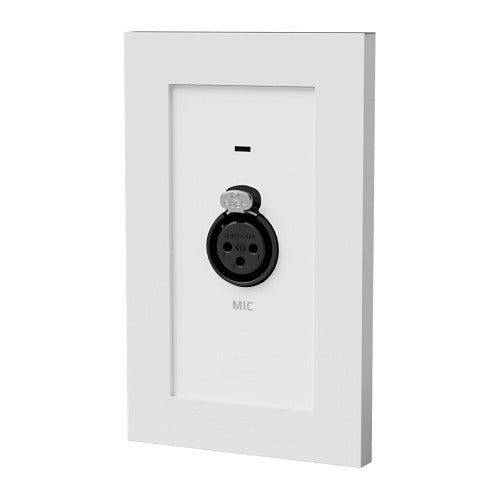

• OvrC enabled; single-gang faceplate included

Specifications

• Brand: Episode
• Model: EA-COM-WP-MIC-WH
• Product type: Microphone / XLR input wall plate
• Input: XLR microphone
• Phantom power: 48V
• Power: PoE
• Color: Gloss white
• Dimensions: 4" x 2.125" x 2.125"
• Operating temperature: 14–122°F
• Operating humidity: 20–90% non-condensing
• Compatibility: Control4
• UPC: 842822064927

Ideal for

• Paging and announcements in retail and restaurants
• Fitness studios and meeting rooms
• MoIP business music systems
