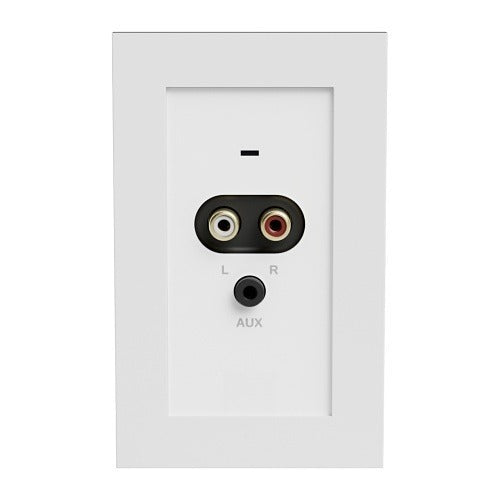

Episode EA-COM-WP-RCA-WH Business Music RCA / 3.5mm Input Wall Plate, White

The Episode EA-COM-WP-RCA-WH is a white RCA / 3.5mm input wall plate that adds analog audio sources to Episode Business Music (EBMS) DSPs and MoIP networks. It lets a DJ, presenter or guest plug a laptop, phone or mixer into the wall and send that audio into the commercial sound system.

The plate acts as a MoIP-enabled transmitter for flexible routing to any MoIP receiver, and built-in EQ and compression fine-tune the signal before distribution. It is powered and controlled over a single CAT5e/6 cable via PoE, and overload protection is built in. A splash-proof design with an acrylic, fingerprint-resistant face keeps it durable, and a patented installation system provides precise junction box alignment with side-by-side installation for clean multi-unit setups. It is available in gloss white and gloss black with an included single-gang faceplate, works with Control4, and is OvrC-enabled for remote monitoring, configuration and troubleshooting.

Key features

• Adds RCA and 3.5mm analog sources to EBMS DSPs and MoIP.
• MoIP-enabled transmitter.
• Built-in EQ and compression.
• PoE power and control over one CAT5e/6 cable.
• Splash-proof, fingerprint-resistant acrylic face.
• Side-by-side installation capability.
• OvrC-enabled; works with Control4.

Specifications

• Brand: Episode
• Model: EA-COM-WP-RCA-WH
• Product type: Audio input wall plate / MoIP transmitter
• Inputs: Stereo RCA, 3.5mm AUX
• Power: PoE
• Overload protection: Yes
• Operating temperature: 14°F to 122°F
• Storage temperature: -22°F to 158°F
• Operating humidity: 20-90% (non-condensing)
• Dimensions: 4" x 2.125" x 2.125"
• Color: White
• Included: Single-gang faceplate
• UPC: 842822065030

Ideal for

• Restaurants and bars with guest DJs
• Conference and event spaces
• Retail and fitness facilities
