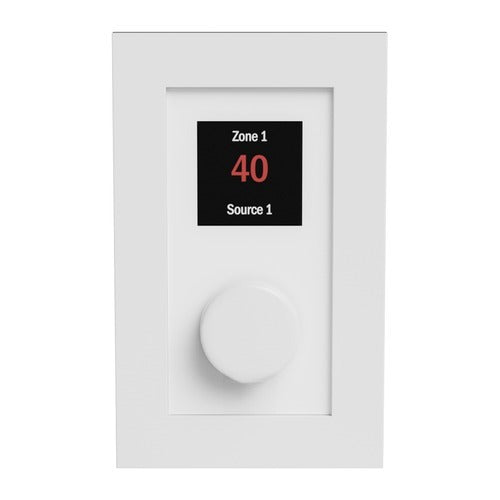

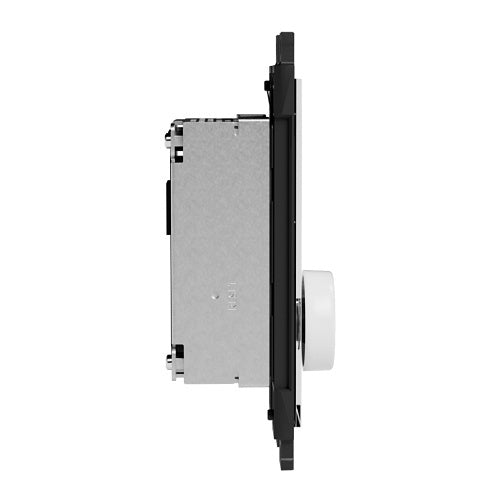

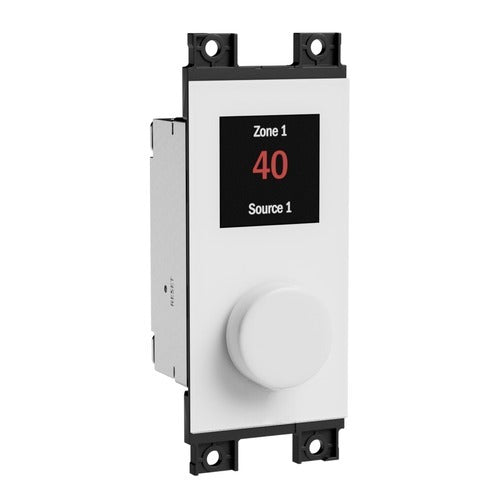

Episode EA-COM-WP-ZONE-WH Zone / Source Controller Wall Plate for Business Music DSPs, White

The Episode EA-COM-WP-ZONE-WH is a white zone and source controller wall plate for Episode Business Music DSPs. It gives staff and customers a simple in-wall control point to adjust volume and choose sources in restaurants, retail stores, offices and other commercial spaces.

A high-resolution color display with light and dark modes makes navigation easy, and any zone or source can be controlled from any zone controller on the network. The plate is PoE-powered over a single CAT5e/6 cable that carries both power and control, simplifying installation. Its IP54 rating suits indoor commercial environments, including kitchens and indoor pools. A patented installation system provides maximum working area and perfect alignment, and the included gloss faceplate has a premium, scratch-resistant finish. It is compatible with Control4 systems for easy future upgrades and supports remote monitoring, configuration and troubleshooting through the OvrC platform.

Key features

• Zone and source control for Episode Business Music DSPs.
• High-resolution color display with light and dark modes.
• PoE-powered over a single CAT5e/6 cable.
• IP54-rated for kitchens and indoor pools.
• Control any zone or source from any controller.
• Patented installation system.
• OvrC-enabled; works with Control4.

Specifications

• Brand: Episode
• Model: EA-COM-WP-ZONE-WH
• Product type: Zone/source controller wall plate
• Power: PoE
• Display: LED color display
• Ingress protection: IP54
• Operating temperature: 14°F to 122°F
• Storage temperature: -22°F to 158°F
• Operating humidity: 20-90% (non-condensing)
• ESD: IEC 61000-4-2 Level 2 contact, Level 3 air-gap
• Dimensions: 4" x 2.125" x 2.125"
• Material: Metal
• Color: White
• Included: Gloss faceplate
• UPC: 842822064903

Ideal for

• Restaurants and bars
• Retail stores and offices
• Commercial kitchens and indoor pool areas
