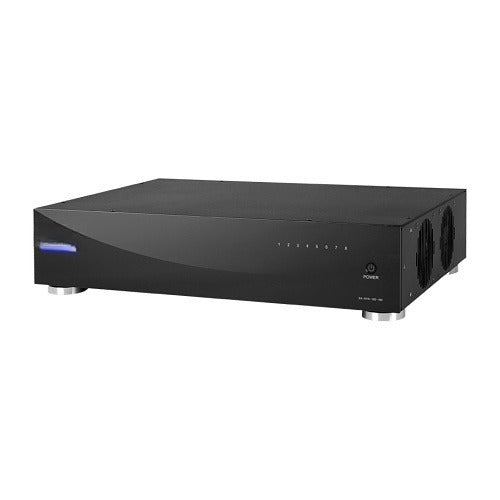

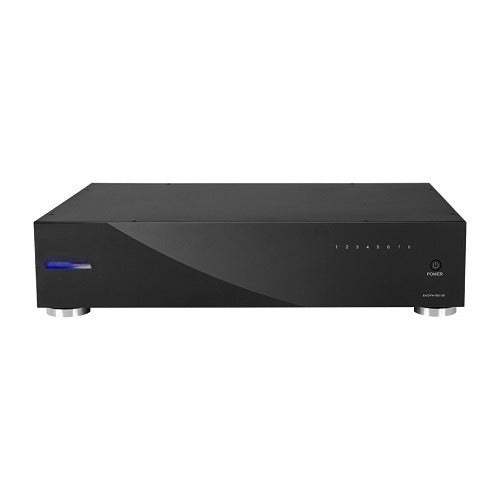

Episode EA-DYN-16D-100 Dynamic Series 16-Channel Class-D Amplifier, 100W per Channel

The Episode EA-DYN-16D-100 Dynamic Series Class-D Amplifier delivers 100W per channel across sixteen channels, making it a powerful centerpiece for large multi-room and whole-home audio systems. Built with premium components for superior audio, it can drive up to eight stereo zones from a single 2U rack unit.

The EA-DYN-16D-100 is designed for flexible, professional installations. Audio sensing and global inputs simplify system design and turn-on, bridgeable outputs let you combine channels for higher power where it is needed, and adjustable gain control lets you balance every zone precisely. Surge protection that exceeds CE Level 3 standards adds peace of mind for an amplifier that will run every day.

Key features

• 16 channels at 100W: powers up to eight stereo zones from one amplifier.
• Efficient Class-D design: premium components for superior audio performance.
• Audio sensing: the amplifier can wake when it detects an audio signal.
• Global inputs: make it easy to send one source to multiple zones.
• Bridgeable outputs: combine channels for extra power when a zone needs it.
• Adjustable gain control: fine-tune each zone's level for a balanced system.
• Surge protection: exceeds CE Level 3 standards.

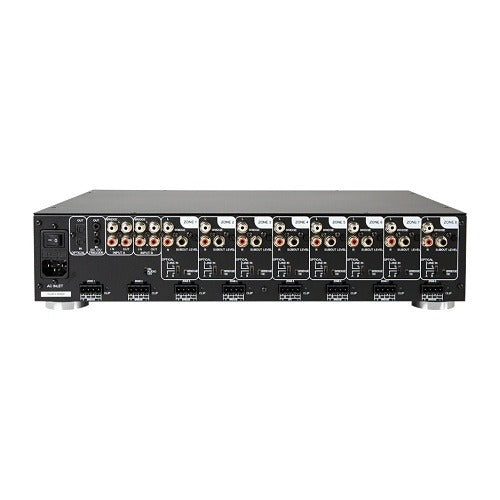

• Per-zone connections: the rear panel shows eight zone sections with RCA inputs, subwoofer outputs, optical inputs and speaker terminals.

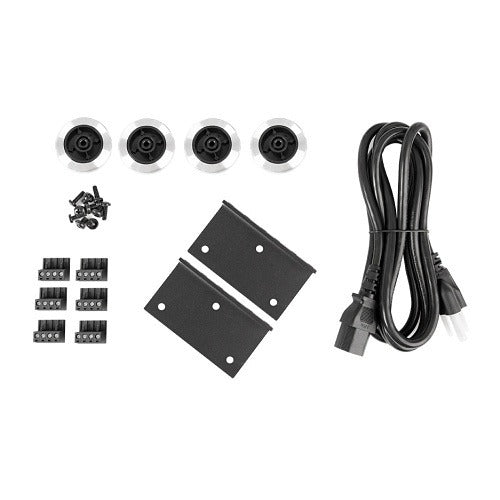

• Rack-ready: 2U chassis; rack ears, feet, speaker connectors and power cord shown in the included-accessories photo.
• Part of a family: the Dynamic Series is available in 2-, 8-, 12- and 16-channel versions.

Specifications

• Brand: Episode
• Model: EA-DYN-16D-100
• Series: Dynamic Series
• Product type: Class-D amplifier
• Audio channels: 16
• Output power: 100W per channel
• Maximum frequency response: 20kHz
• Total harmonic distortion (THD): 0.1% – 0.5%
• Rack height: 2U
• Color: Black
• Dimensions: 17.2" x 4.05" x 12.2"
• Weight: 14 lb
• Certifications: UL, CE, FCC
• Compatibility: Control4
• UPC: 842822043663

Ideal for

• Large whole-home audio systems with up to 8 stereo zones
• Rack-based residential and light-commercial AV installs
• Projects that need bridged high-power zones alongside standard zones
