Episode EA-DYN-8D-100 Dynamic Series 8-Channel Class-D Amplifier, 100W per Channel

The Episode EA-DYN-8D-100 Dynamic Series Class-D Amplifier provides 100W per channel across eight channels, enough to run up to four stereo zones of a multi-room audio system from one slim rack unit. Premium components deliver exceptional audio performance, and the efficient Class-D design keeps power use and heat in check.

Made for sophisticated audio systems, the EA-DYN-8D-100 includes audio sensing and global inputs, bridgeable outputs for versatile configurations, and adjustable gain control for precise sound tuning. Its slim design ships with rack ears for easy installation, surge protection exceeds CE Level 3 standards, and the amplifier is backed by a 2-year limited warranty on parts and labor.

Key features

• 8 channels at 100W: powers up to four stereo zones.
• Exceptional audio performance: premium components throughout.
• Audio sensing and global inputs: simple system turn-on and source routing.
• Bridgeable outputs: combine channels for more power in a zone.
• Adjustable gain control: precise level tuning for each zone.
• Slim design with rack ears: for easy rack installation.
• Surge protection: exceeds CE Level 3 standards.

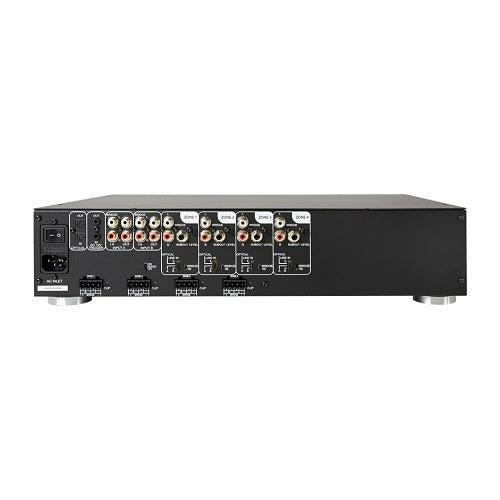

• Per-zone connections: the rear panel shows four zone sections with RCA inputs, subwoofer outputs, optical inputs and speaker terminals.
• Part of a family: available in 2-, 8-, 12- and 16-channel options, up to 1000 total watts.
• 2-year limited warranty on parts and labor.

Specifications

• Brand: Episode
• Model: EA-DYN-8D-100
• Series: Dynamic Series
• Product type: Class-D amplifier
• Audio channels: 8
• Output power: 100W per channel
• Maximum frequency response: 20kHz
• Total harmonic distortion (THD): 0.1% – 0.5%
• Rack height: 2U
• Color: Black
• Dimensions: 17.2" x 4.05" x 12.2"
• Weight: 14 lb
• Certifications: UL, CE, FCC
• Compatibility: Control4
• Warranty: 2-year limited
• UPC: 842822043649

Ideal for

• Whole-home audio systems with up to 4 stereo zones
• Rack-based AV installations
• Installers who need bridging and per-zone gain control
