Episode EA-HYB-AMP-2D-2400 2-Channel Hybrid 70V/8-Ohm Digital Amplifier with IP Control, 2400W

The Episode EA-HYB-AMP-2D-2400 is a 2400W, 2-channel hybrid digital amplifier for large-scale audio systems. It drives both 70V distributed lines and 8-ohm speakers, which makes it especially well suited to landscape audio and Episode SurroundScape speaker installations.

Versatile inputs include balanced and unbalanced analog plus digital, with loop outs for daisy-chaining. An intuitive front-panel display and a WebUI make it easy to adjust input gain per source, and pre-loaded DSP settings include an expanded limiter and high tilt/shelf EQ. The two configurable output channels support loads down to 2 ohms. Pre-built drivers integrate it with Control4 and other control systems, and OvrC cloud management allows remote firmware updates and troubleshooting. The 2RU chassis has enhanced airflow for cooler running in racks, and an auto-switching 100–240VAC supply with an IEC C21 inlet powers it. It is backed by a 2-year limited warranty.

Key features

• 2400W, 2 channels: for large-scale setups (also available in 1200W).
• Hybrid 70V/8-ohm output: two configurable channels, 2-ohm minimum load.

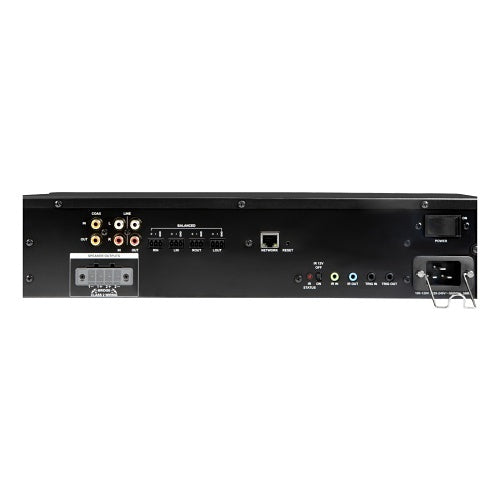

• Balanced, unbalanced and digital inputs with loop outs
• Front display and WebUI: input gain adjustment per source.
• Pre-loaded DSP: expanded limiter and high tilt/shelf EQ.
• Control4 and control-system integration: pre-built drivers.
• OvrC remote management: firmware updates and troubleshooting.

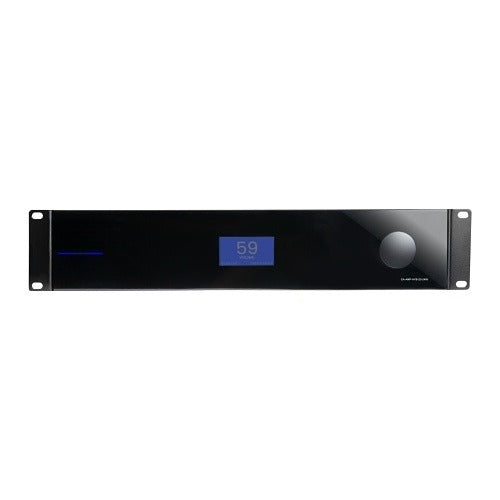

• 2RU design with enhanced airflow
• Landscape-optimized: compatible with Episode SurroundScape speakers.
• 2-year limited warranty

Specifications

• Brand: Episode
• Model: EA-HYB-AMP-2D-2400
• Product type: Hybrid 70V/8-ohm digital amplifier
• Output power: 2400W
• Channels: 2
• Frequency response: 20Hz – 20kHz
• Input voltage: 100–240V AC, auto-switching
• AC inlet: 3-prong IEC 60320 C21
• Circuit requirement: North America 20A (110–120V/60Hz); International 15A (230–240V/50Hz)
• Rack height: 2U
• Dimensions: 17.00" W x 3.50" H x 16.50" D
• Weight: 16.2 lb
• Color: Black
• Warranty: 2-year limited
• UPC: 842822066693

Ideal for

• Large landscape and outdoor audio systems
• Mixed 70V and 8-ohm installations
• Rack-mounted, remotely managed systems

Note: requires a dedicated 20A circuit in North America.
