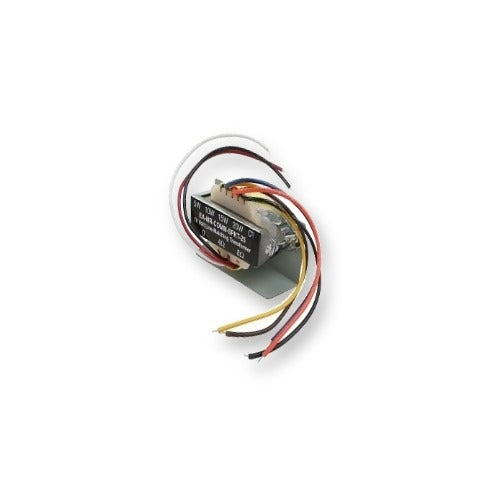

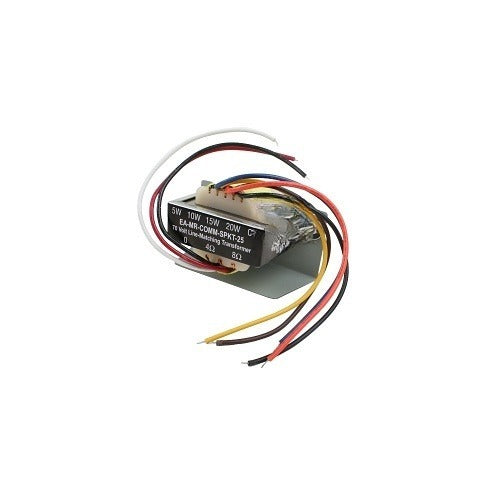

Episode EA-MR-COMM-SPKT-25 70V Commercial Speaker Transformer, 20W

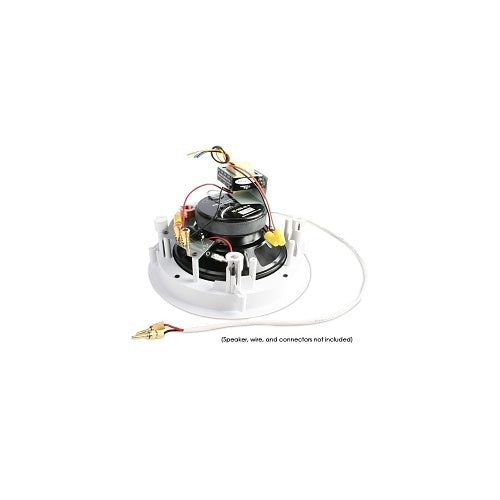

The Episode EA-MR-COMM-SPKT-25 is a 70V line-matching speaker transformer for commercial audio. Add it to a standard 4- or 8-ohm speaker to run that speaker on a 70V distributed system, as shown installed on a ceiling speaker in the photos (speaker, wire and connectors not included).

Primary taps at 5, 10, 15 and 20W let you set each speaker's level on the 70V line, and secondary impedances of 4 and 8 ohms match most speakers. It handles high power with minimal insertion loss of less than 1 dB and a wide 20Hz–20kHz frequency response. Pre-stripped, 6" color-coded leads speed installation, and a self-adhesive mounting system makes it easy to attach the transformer to a speaker or back can.

Key features

• 70V line-matching transformer
• Primary taps: 5, 10, 15 and 20W.
• Secondary impedance: 4 and 8 ohm.
• Insertion loss: under 1 dB.
• Frequency response: 20Hz – 20kHz.
• Pre-stripped 6" color-coded leads
• Self-adhesive mounting

Specifications

• Brand: Episode
• Model: EA-MR-COMM-SPKT-25
• Product type: 70V speaker transformer
• Power rating: 20W
• Primary taps: 5, 10, 15, 20W
• Secondary: 4 / 8 ohm
• Dimensions: 3.37" x 2" x 2"
• Weight: 1.2 lb
• UPC: 842822015172

Ideal for

• Converting 8-ohm speakers to 70V
• Restaurants, retail and office paging systems
• Mixing speaker types on one 70V line
