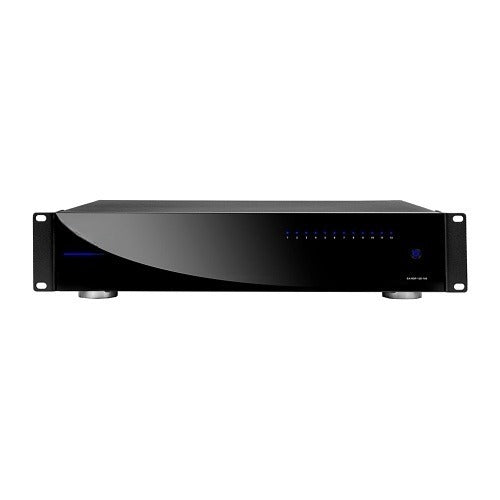

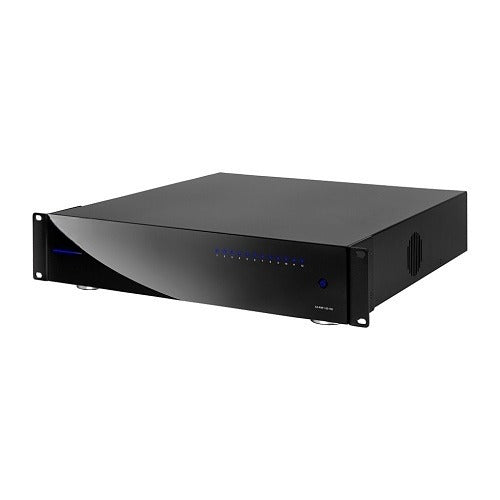

Episode EA-RSP-12D-100 Response Series 12-Channel DSP Amplifier, 100W per Channel

The Episode EA-RSP-12D-100 Response Series DSP Amplifier is a 12-channel, 100W-per-channel amplifier with built-in matrix switching and digital signal processing, designed to run multi-room audio for up to eight rooms. Each zone gets its own dedicated subwoofer output, so you can add low-end impact exactly where it is wanted.

Built for professional smart-home installs, the EA-RSP-12D-100 is IP controlled, with drivers for popular control systems. Active cooling and anti-clipping technology protect the amplifier and your speakers, rackmount ears are included for easy installation, and the unit is backed by a 2-year limited warranty.

Key features

• 12 channels at 100W: 100 watts per channel at 4 ohms.
• Matrix switching for up to 8 rooms: route any source to any zone.
• Digital signal processing: high-tech DSP for clean, well-tuned audio.
• Dedicated subwoofer outputs per zone: add a sub to any room.
• IP control: drivers for popular control systems; listed as compatible with Control4.

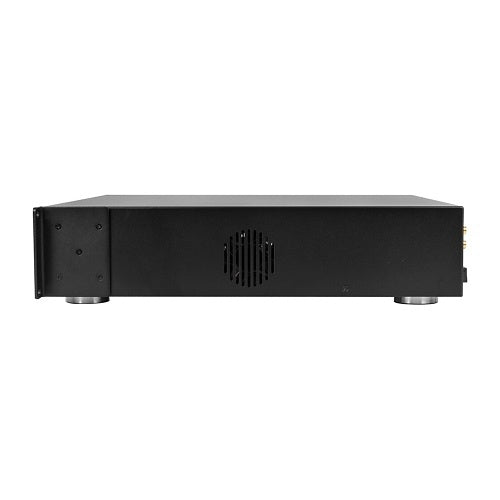

• Active cooling and anti-clipping technology: protection for long, reliable service.

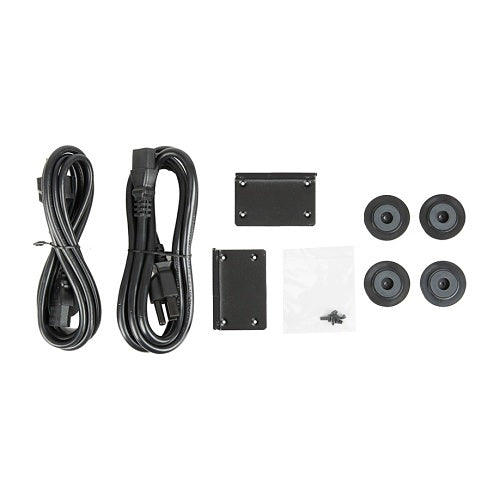

• Rackmount ears included: for easy rack installation.

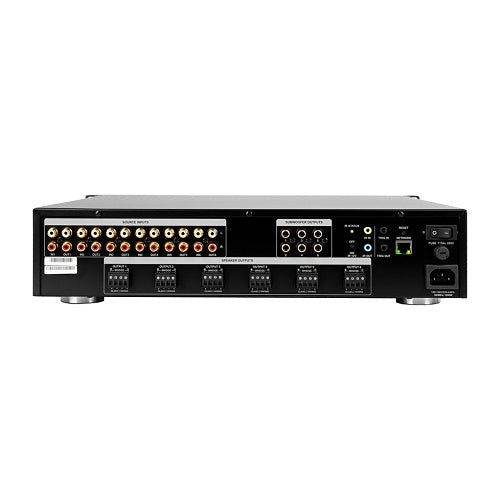

• Connections: source inputs, subwoofer outputs, six pairs of speaker outputs, network port and IEC power inlet, as shown on the rear panel.
• 2-year limited warranty

Specifications

• Brand: Episode
• Model: EA-RSP-12D-100
• Series: Response Series
• Product type: DSP amplifier
• Audio channels: 12
• Output power: 100W per channel at 4 ohms
• Power consumption: 1200W
• Maximum frequency response: 20kHz
• Total harmonic distortion (THD): < 0.1%
• Operating temperature: 14–122°F
• Storage temperature: -22–158°F
• Operating humidity: 20–90% RH
• Certifications: UL, CE, FCC
• Compatibility: Control4
• Warranty: 2-year limited
• UPC: 842822045001

Ideal for

• Whole-home audio for up to 8 rooms
• Systems that need a subwoofer in several zones
• Smart-home projects using IP control
