Episode EA-RSP-8D-100 Response Series 8-Channel DSP Amplifier, 100W per Channel

The Episode EA-RSP-8D-100 Response Series DSP Amplifier is an 8-channel, 100W-per-channel amplifier built to power multi-room audio systems from a single rack location. With matrix switching for up to eight rooms, it lets each zone play its own source, while high-tech digital signal processing keeps the audio clean and well balanced in every space.

The EA-RSP-8D-100 is designed for professional installations. It is IP controlled with drivers for popular control systems, includes rackmount ears for easy installation, and uses an active cooling system for long-term reliability. Anti-clipping technology helps protect your speakers, and Episode's signature presets give you a great-sounding starting point for every zone. It is backed by a 2-year limited warranty.

Key features

• 8 channels at 100W: powers eight channels of audio from one unit.
• Matrix switching for up to 8 rooms: route any input to any zone so each room can play its own music.
• Digital signal processing (DSP): high-tech processing for clean, well-tuned audio.
• Signature presets: ready-made sound settings for superior sound out of the box.
• IP control: network controllable, with drivers for popular control systems; listed as compatible with Control4.
• Anti-clipping technology: helps protect speakers from distortion and damage.

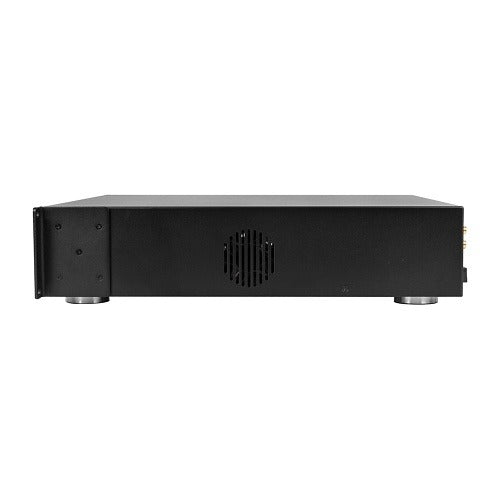

• Active cooling system: keeps the amplifier running cool for a longer service life.

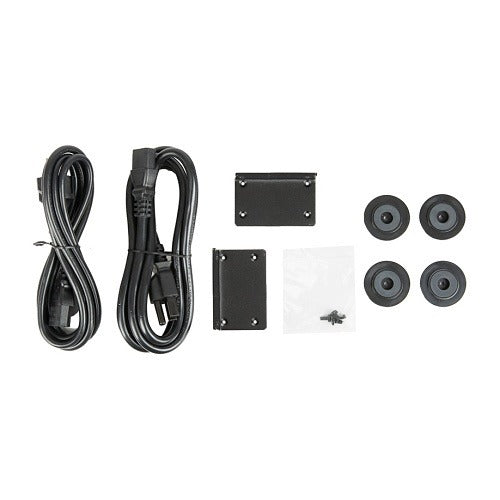

• Rackmount ears included: for clean installation in a standard equipment rack.

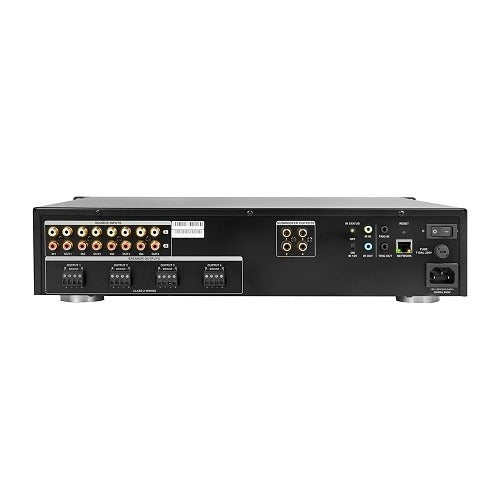

• Connections: RCA analog inputs, RJ45 network port and IEC power inlet, as shown on the rear panel.
• 2-year limited warranty

Specifications

• Brand: Episode
• Model: EA-RSP-8D-100
• Series: Response Series
• Product type: Amplifier
• Audio channels: 8
• Power consumption: 800W
• Maximum frequency response: 20kHz
• Total harmonic distortion (THD): < 0.1%
• Connector types: IEC 60320 C13, NEMA 5-15P, RJ45
• Operating temperature: 14–122°F
• Storage temperature: -22–158°F
• Operating humidity: 20–90% RH
• Certifications: UL, CE, FCC
• Dimensions: 19" x 16.7" x 4"
• Weight: 18.7 lb
• Compatibility: Control4
• Warranty: 2-year limited
• UPC: 842822043274

Ideal for

• Whole-home audio systems with up to 8 rooms
• Rack-based AV installations
• Smart-home projects using IP control and control-system drivers
• Installers who want DSP tuning and speaker protection in one unit
