Episode ECA-70MIXAMP-1-240D 70V Class D Mixer-Amplifier with Bluetooth, 240W

The Episode ECA-70MIXAMP-1-240D is a 240W, single-channel Class D mixer-amplifier with Bluetooth, built for commercial background music and paging. It drives both 70V distributed speaker systems and low-impedance 4–16 ohm setups, so it can power large spaces and many speakers from one compact unit.

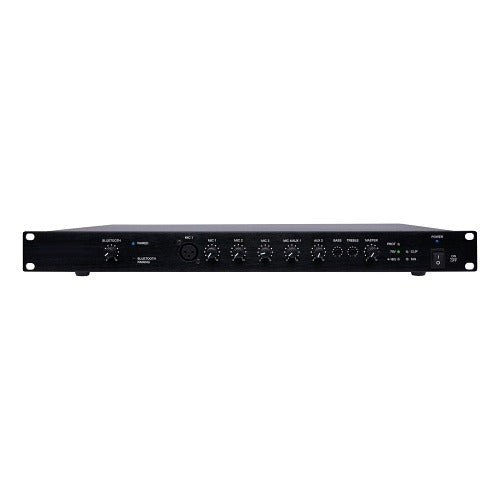

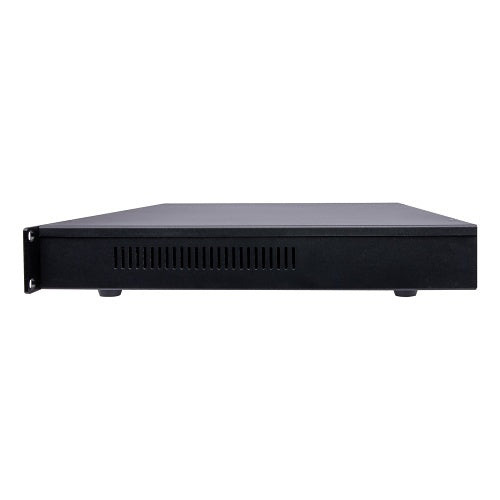

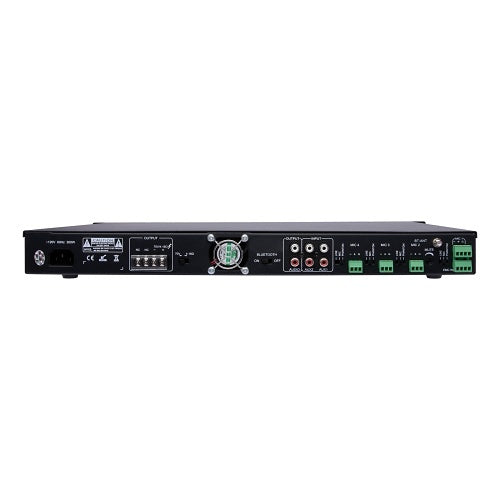

Enhanced Class D amplification conserves power while delivering cleaner sound, even at high volume. Up to 8 inputs let you connect multiple microphones and background music sources, including Bluetooth. Balanced XLR microphone inputs offer independent priority modes, and a dedicated EMC input is ready for a fire alarm or emergency signal. Front-panel controls give quick access to volume, bass, treble, source input and individual mic levels, and an LED meter warns of clipping (green is safe, red signals risk). A balanced line output allows daisy-chaining a second amplifier, with a fixed record output and preamp loop for external EQ or DSP. Side vents and a rear fan let you stack equipment on top safely.

Key features

• 240W Class D, 1 channel
• 70V and 4–16 ohm capable
• Up to 8 inputs, including Bluetooth
• Priority balanced XLR mic inputs
• Emergency (EMC) input
• Front-panel volume, bass, treble, source and mic controls
• LED clip meter
• Line out, record out and preamp loop

Specifications

• Brand: Episode
• Model: ECA-70MIXAMP-1-240D
• Product type: 70V mixer-amplifier
• Output power: 240W
• Channels: 1
• Outputs: 70V, 4–16 ohm
• Maximum frequency response: 16kHz
• THD: 0.1% – 0.5%
• Power consumption: 300W
• Operating temperature: 32–122°F
• Dimensions: 16.9" x 3.75" x 15.2"
• Weight: 13.1 lb
• UPC: 842822063333

Ideal for

• Retail stores and restaurants
• Offices, gyms and houses of worship
• Paging with background music
