Episode ECA-70VMINI-60W 70V Digital Mini Amplifier, 60W x 1 Channel

The Episode ECA-70VMINI-60W is a compact yet powerful 60W, single-channel 70V digital amplifier. Small enough to tuck behind a TV or into a cabinet, it is ideal for adding clear sound to TVs in restaurants, bars and conference rooms, and for enhancing outdoor 70V speaker systems.

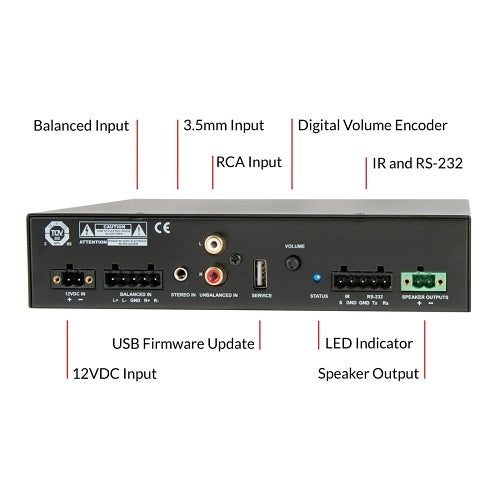

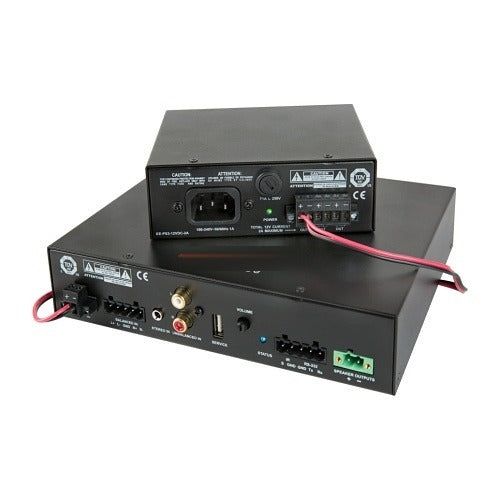

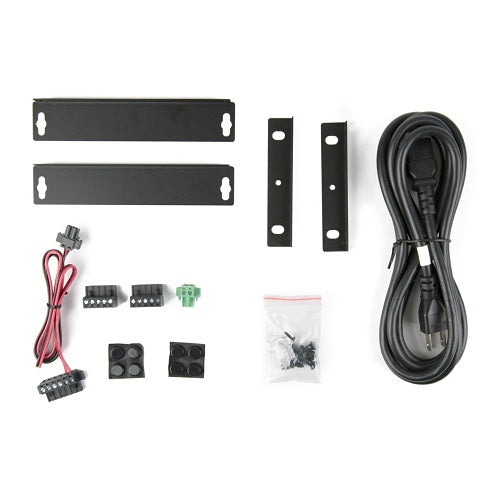

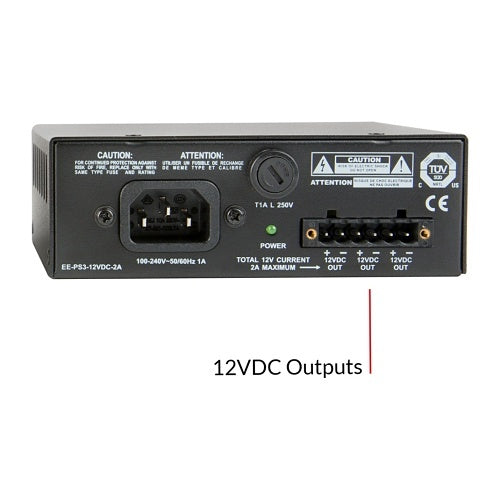

Three inputs, balanced, RCA and 3.5mm, as labeled in the photos, give flexible source connections, and 4mV auto-on sensitivity wakes the amp when audio is present. A digital volume encoder, IR and RS-232 control, an LED status indicator, and a USB port for firmware updates round out the front and rear panels. It runs on the included external 12VDC power supply, which can power multiple units through its 12VDC outputs. Mounting brackets, connectors and cables are included. It is CE, FCC and TUV certified, listed as Control4 compatible, and backed by a 2-year limited warranty for parts and labor.

Key features

• 60W x 1 channel, 70V digital amplifier
• Compact design: fits behind TVs or in cabinets.
• Three inputs: balanced, RCA and 3.5mm.
• Auto-on: 4mV signal sensing.
• IR and RS-232 control
• Digital volume encoder and LED indicator
• External 12VDC power supply included
• 2-year limited warranty: parts and labor.

Specifications

• Brand: Episode
• Model: ECA-70VMINI-60W
• Product type: 70V amplifier
• Output power: 60W, 1 channel
• Inputs: Balanced, RCA, 3.5mm (TRS)
• Maximum frequency response: 20kHz
• THD: 0.5% – 1%
• Power consumption: 30W
• Dimensions: 10.5" x 6.3" x 1.75"
• Rack width: 8"
• Certifications: CE, FCC, TUV
• Compatibility: Control4
• Warranty: 2-year limited
• UPC: 842822031004

Ideal for

• TV audio in restaurants and bars
• Conference rooms
• Small 70V outdoor speaker zones
