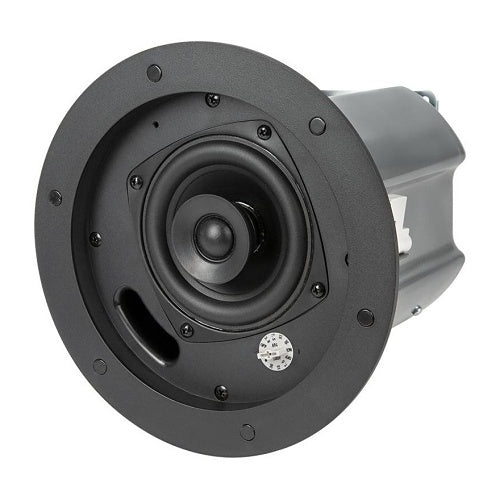

Episode ECS-800-IC-4 800 Commercial Series 70V In-Ceiling Speaker with Tile Bridge, 4" Woofer

The Episode ECS-800-IC-4 is a 70V/100V commercial in-ceiling speaker from the 800 Commercial Series, supplied with a tile bridge for fast installation in drop ceilings. It's built for offices, retail stores, restaurants and other commercial spaces that need clear background music and paging.

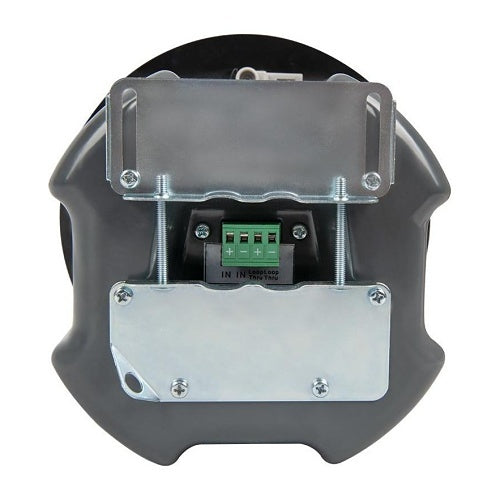

A 4" polypropylene woofer with a 1.2" oversized voice coil works with a 3/4" silk dome tweeter with a neodymium magnet for clear, natural sound. Tool-less tap settings, set from the front-mounted dial shown in the photos, select the 70V or 100V power tap, and an 8-ohm bypass lets the speaker run on standard low-impedance amplifiers too. The back can and safety strap, the rear terminal block with loop-through, and the high-strength, thin-bezel grille all appear in the photos. The speaker is UL listed and backed by a lifetime limited warranty.

Key features

• 70V/100V dual-voltage design with 8-ohm bypass

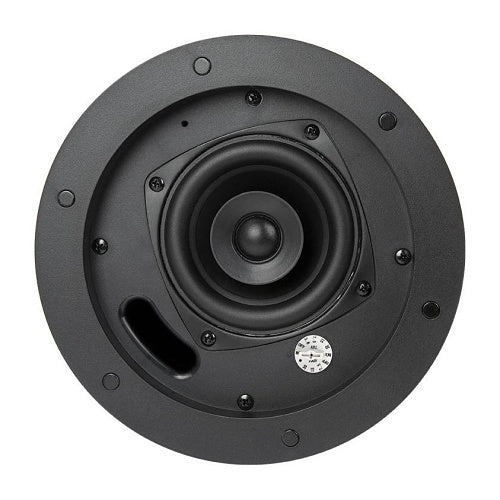

• Tool-less tap settings: front-accessible dial.
• 4" polypropylene woofer: 1.2" oversized voice coil.
• 3/4" silk dome tweeter: neodymium magnet.

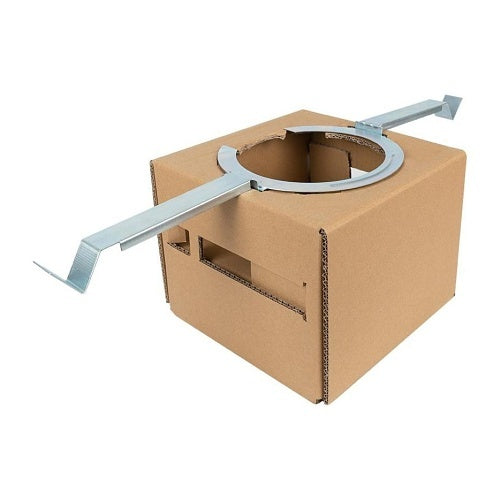

• Tile bridge included: for drop-ceiling installs.

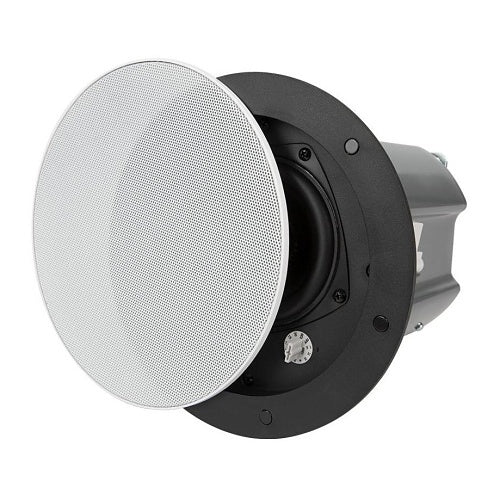

• High-strength, thin-bezel grille

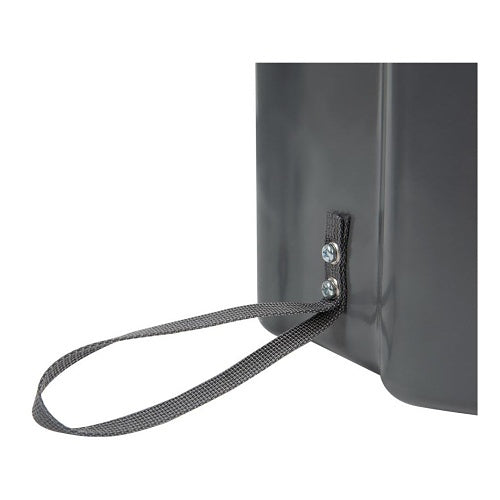

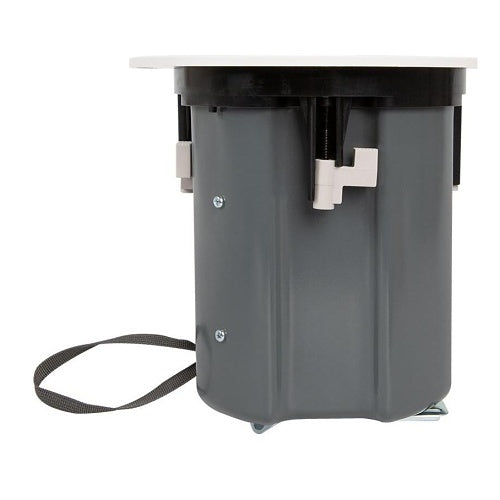

• Enclosed back can with safety strap: shown in the photos.
• UL listed
• Also available in 6"
• Lifetime limited warranty

Specifications

• Brand: Episode
• Model: ECS-800-IC-4
• Series: 800 Commercial Series
• Product type: 70V/100V commercial in-ceiling speaker
• Woofer: 4" polypropylene
• Tweeter: 3/4" silk dome, neodymium
• Voice coil: 1.2"
• Frequency response: 70Hz – 20kHz
• Sensitivity: 84dB
• Taps: 70V/100V with 8-ohm bypass
• Weight: 4.5 lb
• Certification: UL listed
• Warranty: Lifetime limited
• UPC: 842822041102

Ideal for

• Offices and conference rooms
• Retail stores and restaurants
• Drop-ceiling commercial installations
