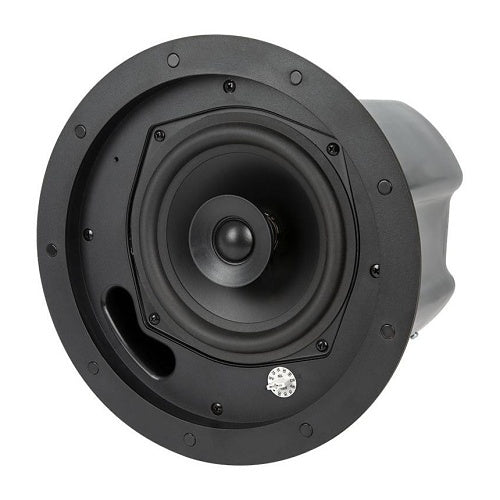

Episode ECS-800-IC-6 800 Commercial Series 70V 6" In-Ceiling Speaker with Tile Bridge

The Episode ECS-800-IC-6 is an 800 Commercial Series in-ceiling speaker with a 6" polypropylene woofer and a 1" silk dome tweeter, designed for background music and paging in offices, retail, restaurants, schools and corporate buildings. A tile bridge is included for installation in suspended ceilings.

Dual voltage support covers 70V and 100V systems, with an 8 ohm bypass for low-impedance amplifiers. Tool-less tap settings make adjustments quick and easy. The silk dome tweeter uses a neodymium magnet, and a 1.2" oversized voice coil supports dependable performance. A high-strength, thin-bezel grille gives a clean, low-profile finish. The speaker is UL listed, covers 70Hz to 19kHz with 87dB sensitivity, and carries a lifetime limited warranty. It is part of a range offered in 4" and 6" sizes.

Key features

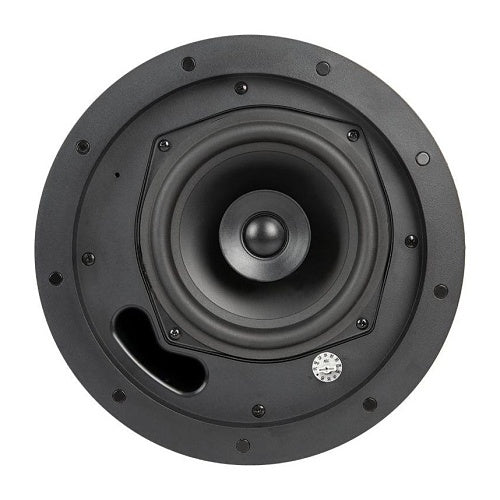

• 6" polypropylene woofer, 1" silk dome tweeter.
• 70V/100V with 8 ohm bypass.
• Tool-less tap settings.
• Neodymium tweeter magnet.
• 1.2" oversized voice coil.

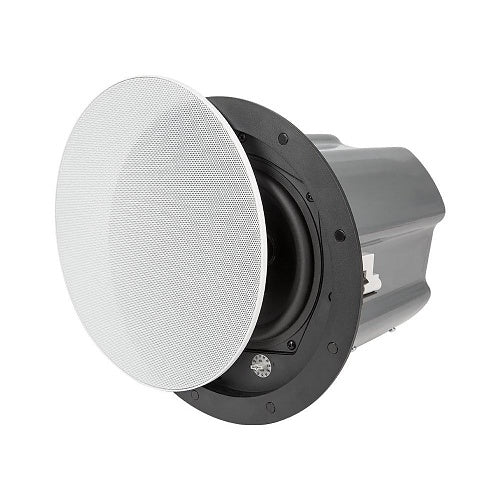

• High-strength, thin-bezel grille.

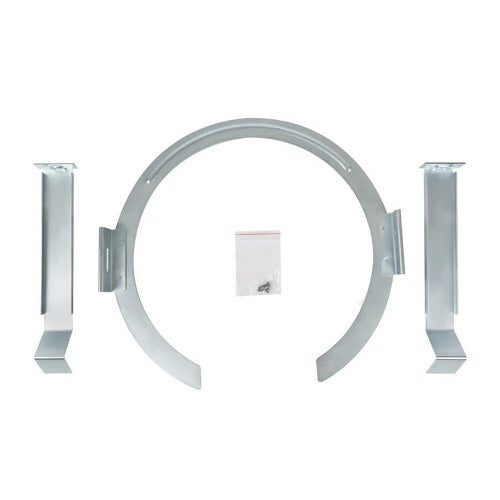

• Tile bridge included.
• UL listed, lifetime limited warranty.

Specifications

• Brand: Episode
• Model: ECS-800-IC-6
• Series: 800 Commercial Series
• Type: 70V/100V in-ceiling speaker
• Drivers: 6" woofer, 1" silk dome tweeter
• Frequency response: 70Hz - 19kHz
• Sensitivity: 87dB
• Diameter: 10.5"
• Product weight: 8 lb
• Shipping weight: 10.95 lb
• Warranty: Lifetime limited
• UPC: 842822041119

Ideal for

• Suspended and drywall ceilings
• Offices, schools and retail
• Background music and paging
