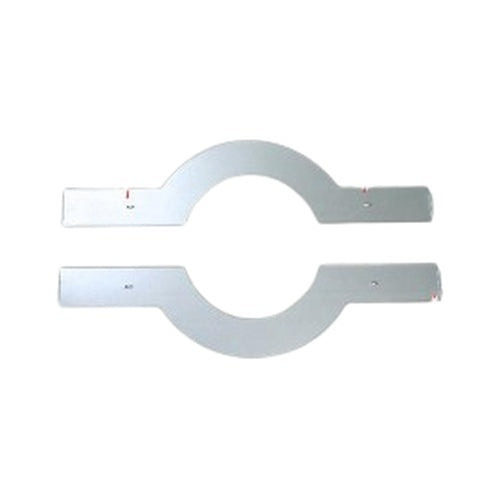

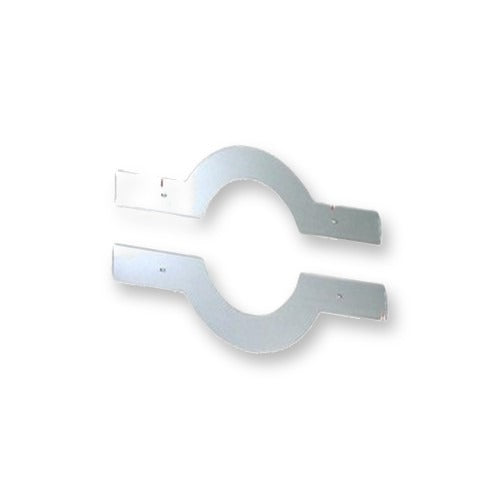

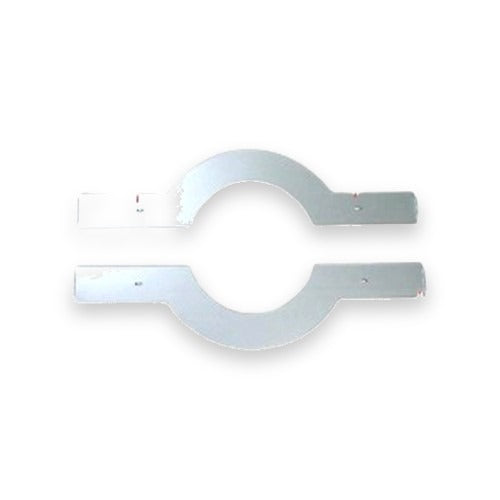

Episode ES-TILEBRIDGE In-Ceiling Speaker Tile Bridge, 1/8" Steel

The Episode ES-TILEBRIDGE is a tile bridge for mounting in-ceiling speakers in suspended (drop) ceiling tiles. Ceiling tiles alone are not built to carry the weight of a speaker; the tile bridge spreads that load across the ceiling grid so the speaker sits securely and the tile does not sag or crack. It is aimed at installers fitting speakers in offices, retail spaces, basements and other rooms with drop ceilings.

The bridge is made from 1/8" steel, so it will not bend under the weight of the speaker. Its two-piece design fits around the speaker opening, and built-in eyelets let you attach security wires as an extra safety measure. At 23.70" wide it spans a standard ceiling tile. It is backed by a lifetime limited warranty.

Key features

• 1/8" steel construction: rigid support that won't bend.
• Two-piece design: fits around the speaker cut-out.
• Security-wire eyelets: add a secondary support wire for safety.
• Spans the ceiling tile: spreads the speaker's weight onto the grid.
• Lifetime limited warranty.

Specifications

• Brand: Episode
• Model: ES-TILEBRIDGE
• Product type: In-ceiling speaker tile bridge
• Material: 1/8" steel
• Width: 23.70"
• Height: 5.60"
• Depth: 0.17"
• Weight: 2.25 lb
• Warranty: Lifetime limited
• UPC: 842822015042

Ideal for

• Installing in-ceiling speakers in drop-ceiling tiles
• Commercial background music systems
• Basements and finished spaces with suspended ceilings

Check that the speaker cut-out size fits the bridge opening before ordering.
