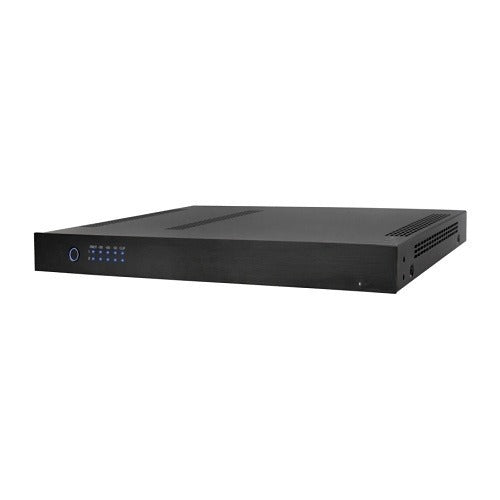

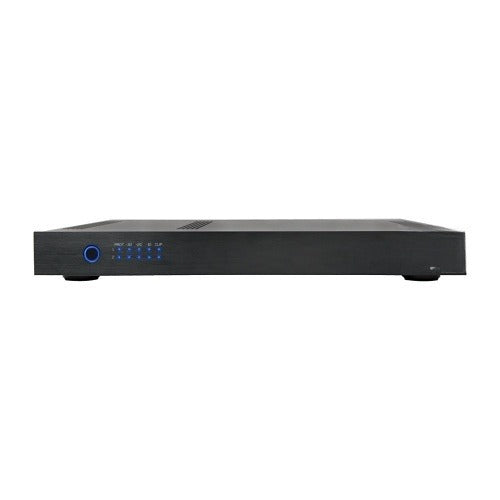

Episode ESA-70V2CH-300W 70V IP-Enabled 2-Channel Amplifier, 300W

The Episode ESA-70V2CH-300W is a 300W, 2-channel 70V IP-enabled amplifier for commercial spaces such as restaurants, bars, conference rooms and outdoor speaker systems. It brings network control and remote management to distributed 70V audio in a compact rack unit.

The ESA-70V2CH-300W is OvrC enabled for remote management and supports IR, IP and RS-232 control, so it fits neatly into professionally integrated systems. Four inputs and a loop-out give flexible source routing, and a built-in web interface, shown in the photos, displays system status and lets you adjust input and output gain. It is backed by a 2-year limited warranty.

Key features

• 300W, 2-channel 70V amplifier: for larger distributed commercial systems.
• OvrC enabled: remote management and monitoring.
• IR, IP and RS-232 control: integrates with control systems; listed as compatible with Control4.

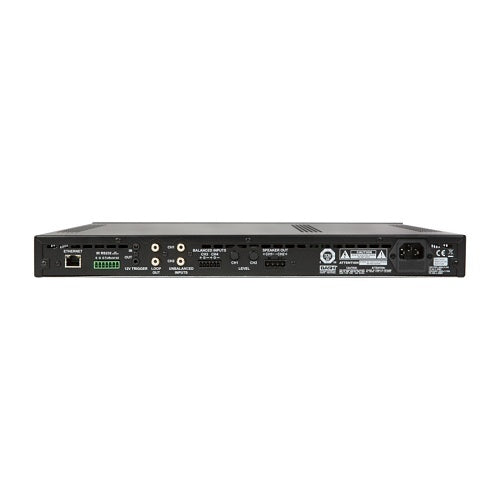

• Four inputs and loop out: flexible source routing and expansion.

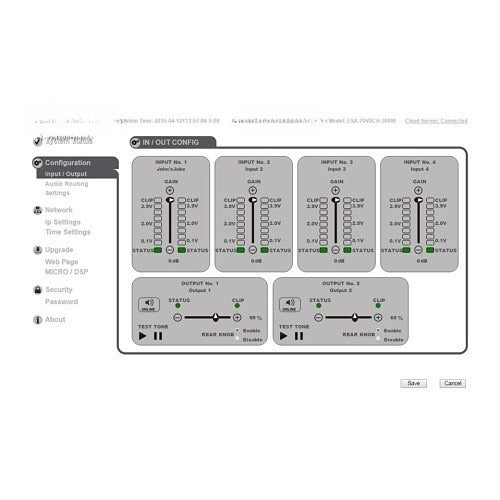

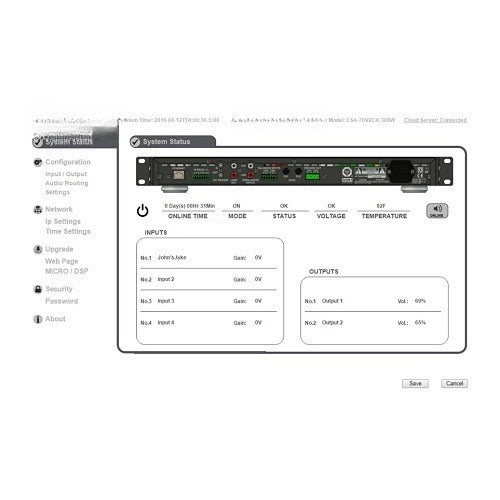

• Web configuration interface: system status and input/output gain control, as shown in the photos.
• Indoor and outdoor speaker systems: well suited to enhancing outdoor speaker installations.
• 2-year limited warranty

Specifications

• Brand: Episode
• Model: ESA-70V2CH-300W
• Product type: 70V amplifier
• Output power: 300W, 2 channels
• Maximum frequency response: 20kHz
• Total harmonic distortion (THD): < 0.1%
• Power consumption: 800W
• Control: IR, IP, RS-232, OvrC
• Rack width / depth: 17" / 14"
• Operating temperature: 32–122°F
• Certifications: Meets FCC Part 15, UL EN60065
• Compatibility: Control4
• Warranty: 2-year limited
• UPC: 842822031844

Ideal for

• Restaurants and bars
• Conference rooms and offices
• Outdoor 70V speaker systems
• Remotely managed commercial installs
