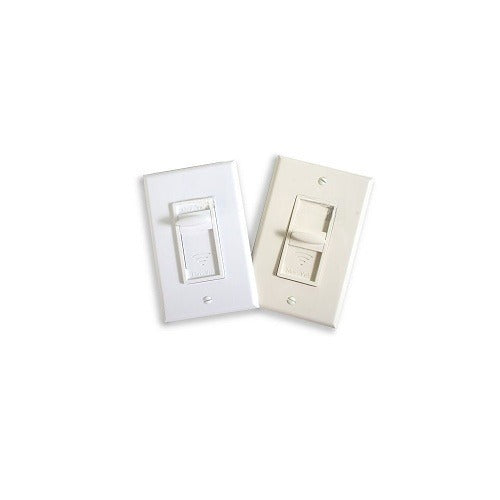

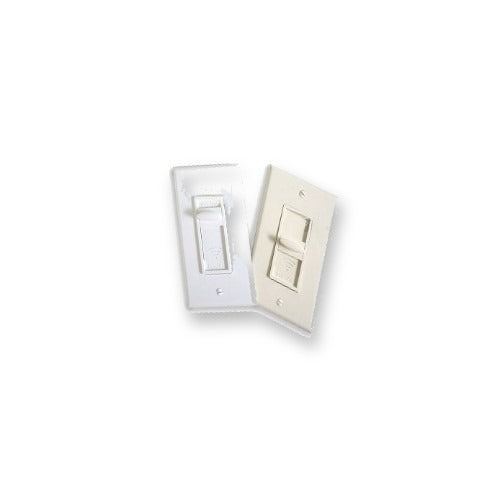

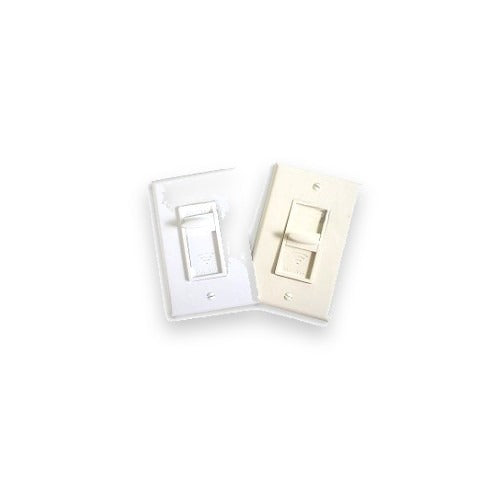

Episode EVC-100S-WHLA Sliding Volume Control, 100W, White & Light Almond

The Episode EVC-100S-WHLA Sliding Volume Control gives every room in a multi-room or whole-home audio system its own simple, wall-mounted volume control. Rated at 100W, it installs in a standard wall box and uses a smooth sliding control, so anyone in the room can raise or lower the music without reaching for a remote or an app.

Designed with installers in mind, the EVC-100S-WHLA features tool-less wire connectors and a built-in impedance multiplier switch that lets you run up to eight pairs of speakers with volume controls from a single stereo amplifier while protecting the amplifier from unsafe load conditions. Interchangeable white and light almond components are included in the box, so you can match the control to the wall plates and switches already in the room.

Key features

• 100W power rating: handles the output of typical multi-room audio amplifiers.
• Sliding volume control: a Decora-style slider gives quick, intuitive adjustment, with a full 12 steps of volume control.
• Impedance multiplier switch: run up to 8 pairs of speakers with volume controls from one stereo amplifier; set the switch to the right position and the amplifier is protected from dangerous load conditions.
• Tool-less connectors: just insert the stripped wire and snap the connector closed for a secure, reliable connection; accepts up to 14-gauge wire.
• Interchangeable color parts: white and light almond knob, Decora-style insert and Midi wall plate are included for an easy color change.
• Control4 compatible: listed as compatible with Control4 systems.

Specifications

• Brand: Episode
• Model: EVC-100S-WHLA
• Product type: Volume control
• Product line: MRA (multi-room audio)
• Power rating: 100W
• Impedance: 8 ohm
• Maximum frequency response: 20kHz
• Wire gauge: up to 14 AWG
• Colors included: White, light almond
• Compatibility: Control4
• UPC: 842822011860

Ideal for

• Multi-room and whole-home audio installations
• Kitchens, living rooms, patios and bedrooms with in-wall or in-ceiling speakers
• Systems running several speaker pairs from one stereo amplifier
• Installers who want fast, tool-free wiring
