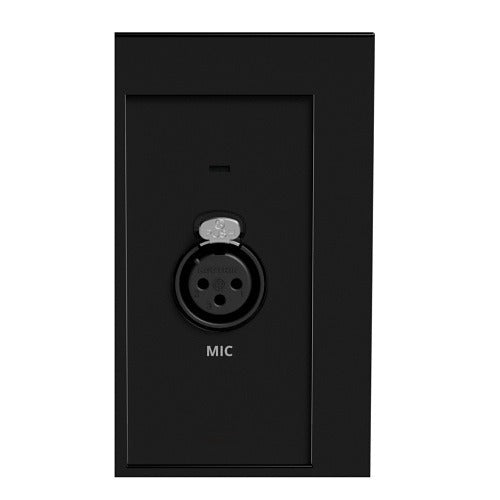

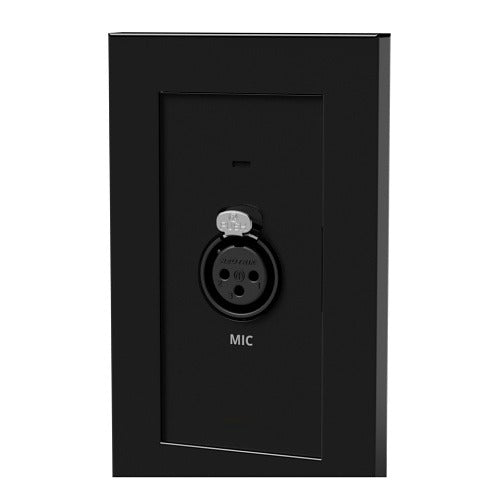

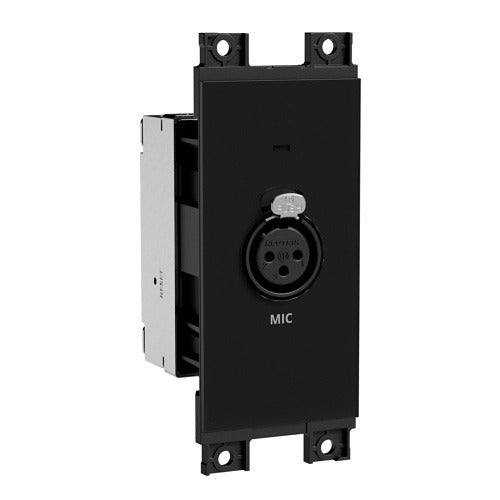

Episode EA-COM-WP-MIC-BL Business Music Microphone / XLR Input Wall Plate, Black

The Episode EA-COM-WP-MIC-BL is a black microphone / XLR input wall plate for Episode Business Music (EBMS) DSPs and MoIP networks. It lets presenters, hosts and staff plug a microphone into the wall for announcements, events and paging through the commercial sound system.

Built-in mic processing includes compression, gating, a de-esser and DSP EQ to keep speech clear, and 48V phantom power supports condenser microphones. The plate is MoIP-enabled for use with any MoIP system and is PoE-powered and network-connected over a single CAT5e/6 cable. A splash-proof design with an acrylic, fingerprint-resistant faceplate stands up to commercial use, and a patented installation system provides precise alignment and maximum working area. It is available in gloss white and gloss black with an included single-gang faceplate, works with Control4, and is OvrC-enabled for remote monitoring, configuration and troubleshooting.

Key features

• Mic/XLR input to EBMS DSPs and MoIP networks.
• Compression, gating, de-esser and DSP EQ.
• 48V phantom power.
• MoIP-enabled.
• PoE power and network over one CAT5e/6 cable.
• Splash-proof, fingerprint-resistant faceplate.
• OvrC-enabled; works with Control4.

Specifications

• Brand: Episode
• Model: EA-COM-WP-MIC-BL
• Product type: Microphone input wall plate / MoIP transmitter
• Input: XLR
• Phantom power: 48V
• Power: PoE
• Overload protection: Yes
• Operating temperature: 14°F to 122°F
• Operating humidity: 20-90% (non-condensing)
• Dimensions: 4" x 2.125" x 2.125"
• Color: Black
• Included: Single-gang faceplate
• UPC: 842822064910

Ideal for

• Restaurants and event venues
• Conference rooms and houses of worship
• Gyms and retail announcements
